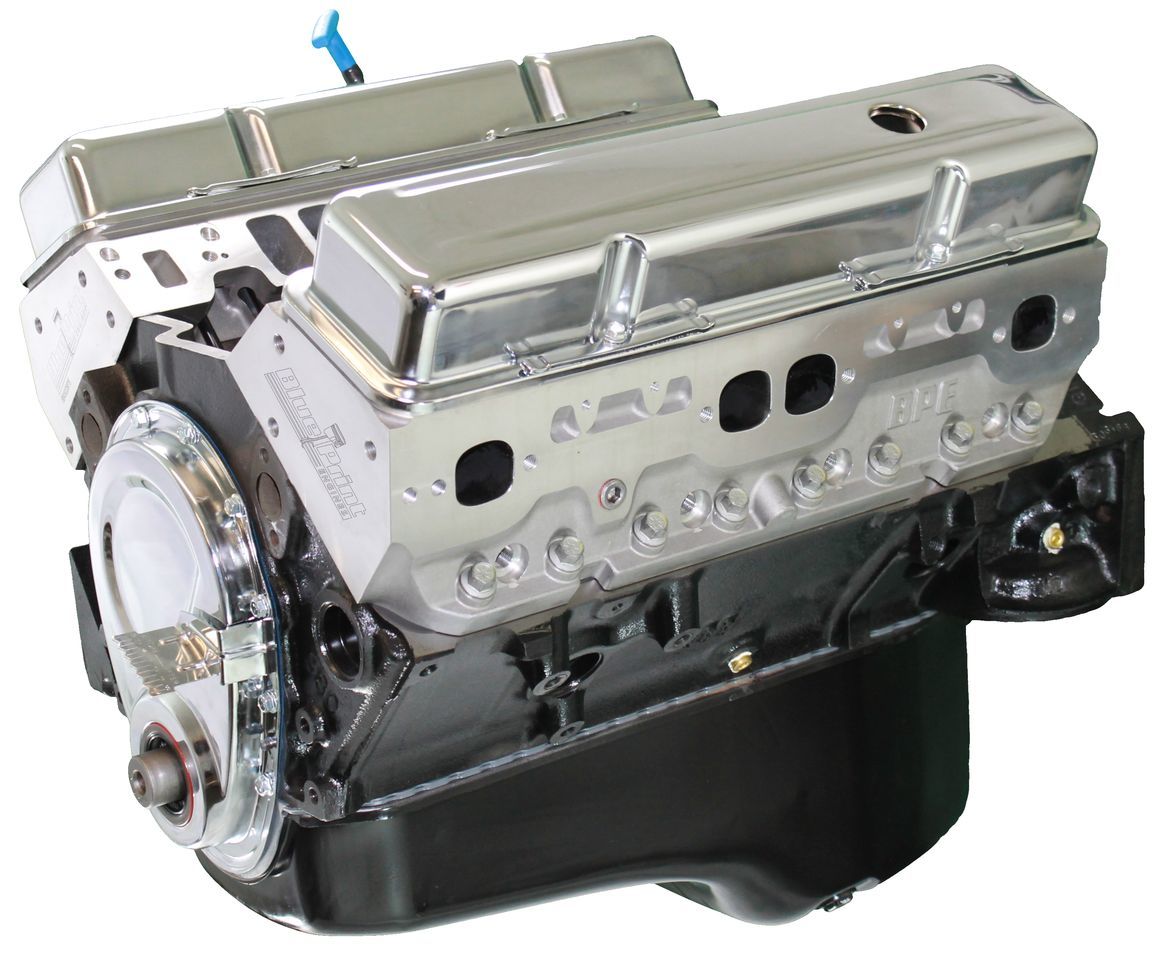

Crate Engine - Base Engine - 383 Cubic Inch - 430 HP / 450 ft Lbs TQ - Small Block Chevy - Each
\n\n
\nBLOCK:
\n- \n
- Hand picked seasoned block
Square and parallel decked
Align honed main bearing bore
Cylinders honed on computer controlled machine to within .0002 straightness and roundness
Cylinders are sonic tested for thickness
4-Bolt Main
4.000" Bored .040" Over
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick only \n - Drilled and tapped for clutch linkage \n
\n
\nROTATING ASSEMBLY:
\n- \n
- New BluePrint Cast steel crankshaft
3.750" Stroke
OEM type 5.700" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External Front/ External Rear \n
\n
\nCYLINDER HEADS:
\n- \n
- BluePrint Aluminum Cylinder Heads - H8002K
64cc chamber
2.02" intake/1.60" exhaust valves
195cc intake/75cc exhaust runners \n
\n
\nCAM SPECS:
\n- \n
- Cam Type: Roller
.528 Intake .536 Exhaust
221 Intake / 226 Exhaust duration
@.050 - 110 degree lobe separation \n
\n
\nIGNITION TIMING:
\n- \n
- 34 Degrees Total at 3500 RPM \n
\n
ALSO INCLUDES:
\n- \n
- New valve covers, oil pan and timing cover
Brass freeze plugs
Dyno test results shipped with engine \n
